Product Description
Parker's directional control valve series D1SE in size NG06 / CETOP 03 / NFPA D03 combines a robust valve design with the advantages of a seat valve. The valve poppet is almost leakage-free and enables a safe switching even after longer standstill periods for a reliable operation.
Markets:Industrial,Machine tools,Molding,Rubber & tire processing.Features/Benefits:Compact, proven design that represents our long-term experience in hydraulics - increases reliability,Robust all-steel design - important functional inner parts are hardened,Poppet and seat are grinded - practically no leakage,Short delivery time - no warehousing necessary.Applications:Suitable for general hydraulic applications,General presses,Machine tools,Injection molding,Blow molding,Tire presses.
Technical info:The directional control valve type D1SE is equipped with a wet pin armature solenoid, drain free tapered poppet. Due to the 3/2 way design, port A is either connected with P or discharged in the tank. The neutral position (solenoid not activated) is taken automatically by a return spring. This position remains until the solenoid is energized.The valve poppet including activation lever and the armature of the solenoid are located in the pressurized oil chamber of connection T. The valve poppet is designed such that there can be no differential area in its axial operational direction (opening, closing). Thus it is statically pressure-balanced so that the valve can be switched in both flow directions even under pressure.
| Brand | Parker |
| Model | D1SE83BNJW |
| Operation Type | Direct |
| Connection Type | Connector as per EN 175301-803 |
| Actuation Type | Solenoid |
| Function | 2-way |
| Port Connection | NG06 / CETOP 03 |
| Solenoid Connection | Connector As Per EN 175301-803 |
| Maximum Flow Rate | 20 L/min |
| Maximum Operating Pressure | 350 bar |
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Product Tags:
|
|

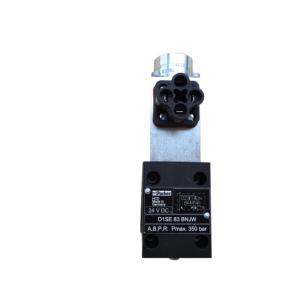

Parker Direction Valve D1SE83BNJW For General Hydraulic Applications Images
|
